Gamification: Intervention Experience to Improve Motivation and Performance in Anatomy

Introduction

In the pursuit of improving academic outcomes, new methodologies that promote students' extrinsic motivation and enhance their levels of attention have shown success in productivity and performance. Factors that best predict academic performance include motivation, learning strategies, and classroom climate [1]. It has been demonstrated that teaching resources that enhance motivation not only influence academic performance, but also play a significant role in activating learning, as students engage their learning strategies when motivated [2]. Thus, motivation may play a fundamental role between learning and academic performance [3].

Therefore, suggesting a class design based on a methodology that motivates students can improve the learning experience, yielding a positive effect on academic performance. Authors have revealed that participatory methodology significantly enhances student motivation and participation [4]. Moreover, student motivation has been positively associated with academic performance, as well as the roles of leadership and collaborative work among students [5,6].

In education, gamification is considered a strategy that improves motivation by incorporating game components into learning processes, termed "game-based learning" (GBL). This allows students to test their retention and knowledge through more dynamic, motivating, and challenging activities than those used in traditional education [7]. According to Brull et al. [8], GBL enables students to participate and create a learning community, enjoying the freedom to experiment and fail in a supportive environment. Thus, students have the opportunity to interact with different sensations that keep them motivated.

Evidence suggests that students engaged in gamified environments improve their learning, motivation, and commitment [9,10]. In the university context, various authors have found gamification to be an opportunity to enhance student motivation, group mechanics, attention, and meaningful learning [11,12].

Considering the context of education in morphological sciences in Chile, recent approaches to gamification in anatomy concluded that performance was significant in the experimental group (intervened with gamification). Results derived from student perception regarding the tool highlighted its recommendations for performance. The highest-rated components were challenges and tournaments, acting as active agents in promoting participation, leadership, and group collaboration to solve anatomy questions [13].

Accordingly, implementing a successful gamification strategy requires considering six elements [14,15]: firstly, clearly define the educational objectives to design gamification strategies coherently and effectively; secondly, delineate the behaviors to be enhanced in students, such as knowledge, attitudes, and skills; thirdly, identify the players and their traits to design activities relevant to their real interests; fourthly, establish activity cycles, defining the gamification system; fifthly, ensure fun, as it forms the foundation of any game, by describing the fun events included in the strategy [16]; lastly, consider resources, including tools for strategy development (measurement, tracking, indicators, etc.).

This work aims to evaluate the effect of gamification on motivation and academic performance in the subject of anatomy and physiology of human body systems in undergraduate students of the School of Health Sciences at the University of Viña del Mar, Chile.

Method

The study corresponds to a quantitative approach with an observational design of descriptive scope and cross-sectional temporal dimension and was conducted during the Structure and Function course, which covers the anatomy and physiology of systems for first-year students in health-related careers at Viña del Mar University, Chile. The sample consisted of 81 nursing students who were taking the course for the first time.

In the first stage, the intervention was designed using gamification strategy. Thematic units were selected, and challenges (games) were created to be implemented during practical sessions in the laboratory (see Figure 1). Six challenges were formulated, three of which focused on contents from the first thematic unit on the nervous system, while contents from the cardiorespiratory, digestive, and renal systems were not intervened. Subsequently, sessions were scheduled to incorporate these challenges or games into their strategies.

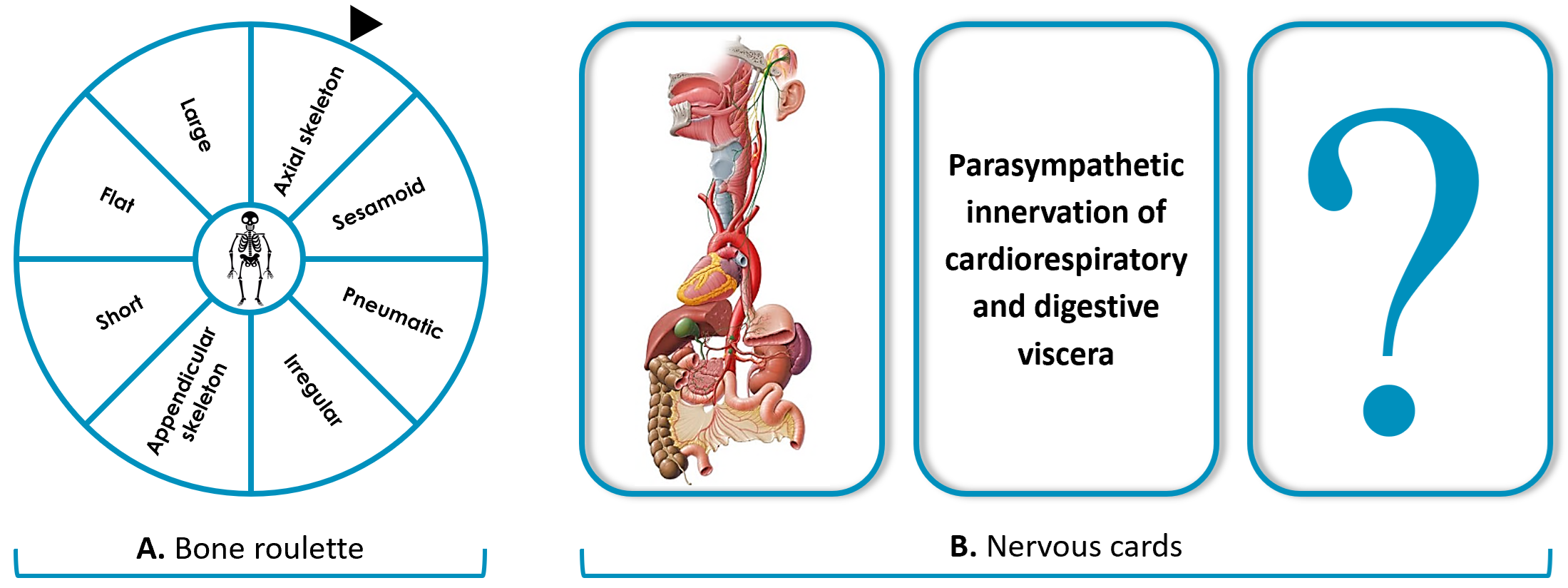

Figure 1. Examples of challenges/games used.

In the second stage, the gamification strategy was applied by introducing the challenges in the scheduled sessions. The dynamics were carried out in groups for 20 minutes of each class.

After completing the six sessions that included the challenges/games, students were administered the Motivational and Learning Strategies Questionnaire in its short version (MSQL SF), following the protocol of Masso et al. [17]. This instrument consists of 40 items that assess the perception of two major domains: motivation and learning strategies. Motivation is divided into two dimensions: task appraisal and anxiety about evaluations. On the other hand, learning strategies assess three dimensions: cognitive and metacognitive strategies, resource management, and intrinsic orientation. Students responded to the questionnaire using a Likert-type scale, assigning a score to each item according to their level of agreement (see Appendix).

To administer the MSLQ-SF instrument, two of the researchers, GU and EM (with training in science education), explained to the students what each item and question consisted of and provided examples of each to facilitate understanding. The students were informed that the questionnaire gathers information according to each individual's perception for each question. Each participant completed the questionnaire individually, and GU and EM were available in the classroom at all times to resolve any questions that arose. The interpretation was carried out by the same academics. , considering that EM had prior experience in administering the instrument.

Each appraisal they had of each statement also presented a score, with possible response categories: very true (5), somewhat true (4, 3, 2 points), and not true (1 point) (see Figure 2).

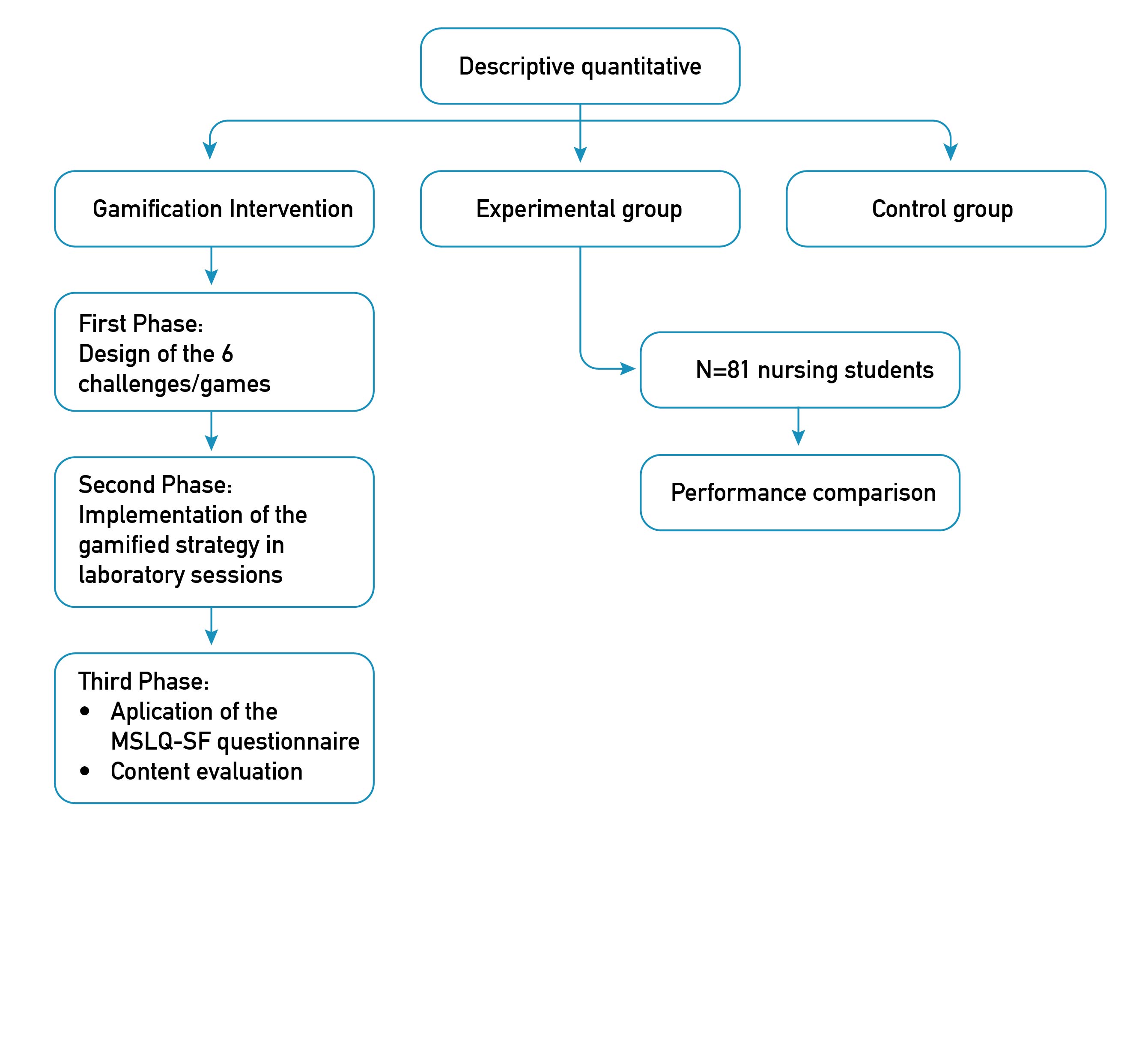

Figure 2. Methodological design of the study.

Each unit was evaluated, and students' grades were recorded. A 60% requirement scale was considered. The grading scale used to evaluate performance ranged from 1 to 7, with a grade of ≥ 4.0 considered passing and <4.0 considered insufficient.

Subsequently, a descriptive analysis was conducted regarding the responses obtained from the MSQL-SF questionnaire, and performance was compared. For this analysis, Exam 5 corresponds to the grade derived from the thematic unit that used gamification (generalities of the nervous system), while Exam 6 corresponds to the grade of the thematic unit not intervened (cardiorespiratory, digestive, and renal). Additionally, performance was compared between the nursing course of 2024, which had the gamification tool implemented (considered as the experimental group), and the nursing course of 2022-2023, which did not have any interventions (considered as the control group I-II).

Ethical considerations

The work followed all institutional protocols and received approval from the ethics committee (CEC-UVM 12-24). Informed consent was obtained from the students, explaining the research methodology, their right to participate, withdraw voluntarily from the study, as well as the protection and confidentiality of data, which would only be used for research purposes by the principal author.

Results

The motivation item, regarding its dimension of anxiety about exams, showed that more than 70% of students assigned a score between 4 and 5 to their levels of anxiety when taking an assessment. When observing the second dimension of the motivation factor, task appraisal, it is possible to determine that at least 45% of students have difficulties managing the time and place of study for the subject (see Table 1).

Table 1. Percentages and mean for MSQL-SF Motivation Questionnaire.

A second factor analyzed in the MSLQ-SF instrument addressed learning strategies. When observing the results derived from the elaboration dimension, over 70% of students reported applying cognitive and metacognitive strategies to learn the subject. However, 57% of participants admitted to some extent giving up studying or only studying what was easier when the content appeared more complex. The organization dimension revealed that students positively related to strategies that allow them to manage resources for studying the content, such as summarizing, taking notes, and reviewing key concepts. Regarding critical thinking, an important finding is that 75% of surveyed students modify their study methods based on the teaching style of the instructor (see Table 2). Finally, in the metacognitive and behavioral self-regulation dimension, there was homogeneity among positive average scores for statements that inquire about going back through readings, solving application activities, and using learned material as a starting point for more complex inferences on the same topic.

Table 2. Percentages and mean for MSQL-SF Learning Strategies Questionnaire.

For the intrinsic orientation goals dimension, about 70% of students strongly agreed or agreed with statements indicating interest in the subject and finding its content challenging and stimulating their curiosity. Regarding time and resource management and effort self-regulation, most students uniformly reported having a study environment conducive to concentration. Virtually all surveyed students considered the material provided useful for learning; however, the lowest score revealed that only 65% of participants try to review content they find boring or uninteresting.

To determine the effect of the gamification strategy on academic performance, the average grades obtained were compared. Figure 3 shows that there were no significant differences between the average grades for Exam 5 (post-gamification) between the control and experimental groups (t-test, p < 0.05). Regarding the thematic unit that was not intervened, the average grade for Exam 6 (without gamification) in the experimental group was lower compared to the control group; however, this difference was not significant (t-test, p < 0.05).

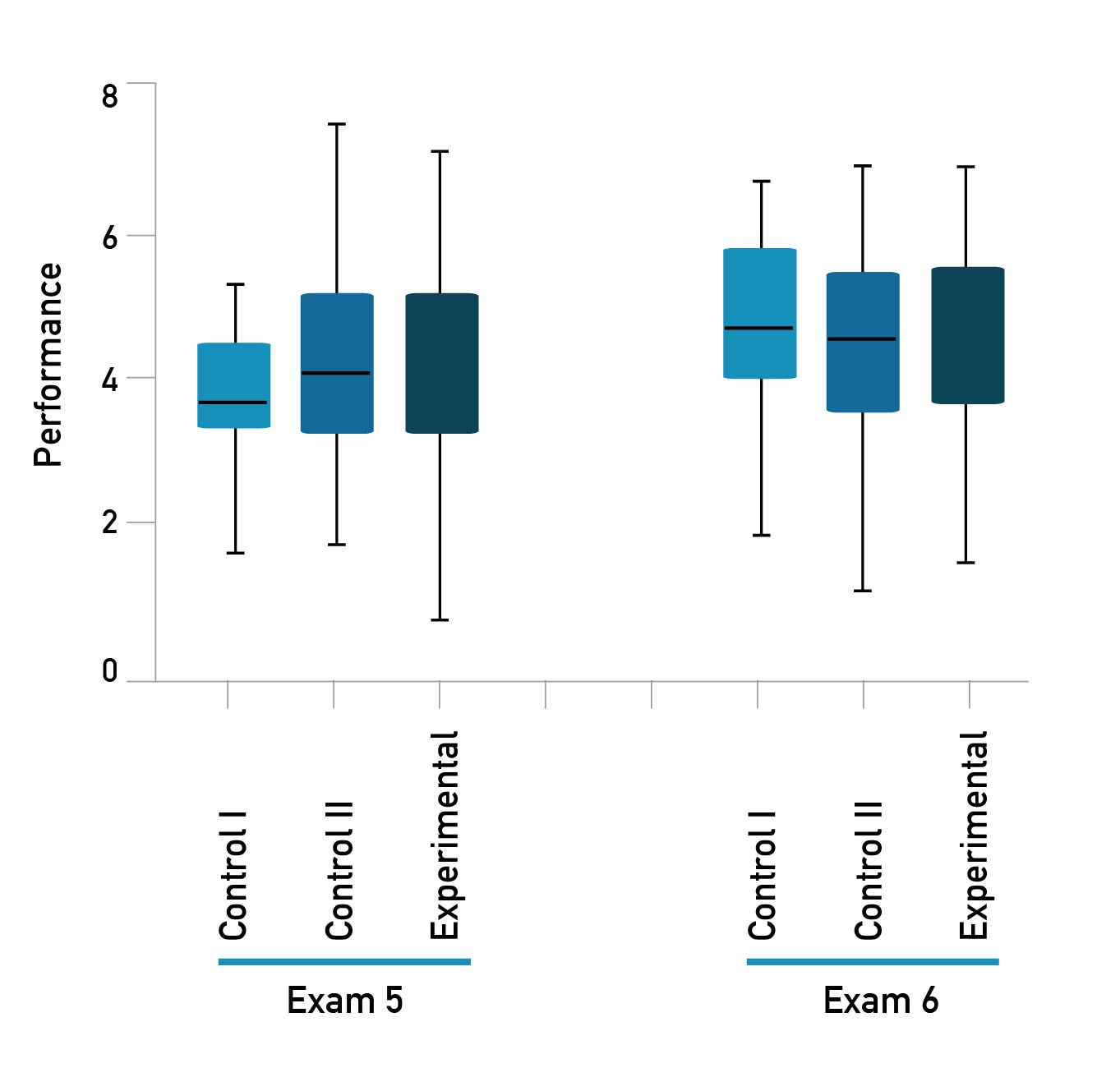

Figure 3. Effect of gamification on performance.

Discussion

The gamified strategy was well received by the students, who highlighted that its implementation allowed for increased engagement with activities incorporating game elements, making the approach to new content more entertaining for understanding anatomy and physiology of the human body systems, similar to what has been observed in other studies using this type of intervention. Another noteworthy point regarding learning strategies is that most students (approximately 80%) engage in activities focused on metacognitive self-regulation and effort. Regarding the anxiety dimension, approximately 70% expressed feeling uncomfortable and restless with evaluations, as well as fearing failure. Additionally, half of the participating group reported difficulties in adapting a study schedule. No differences were found between the control and experimental groups in which the intervention was applied.

After analyzing the results of this study, a first point of debate relates to identifying conditions that promote motivation [18] and the relationship with the learning strategies employed by the students themselves [19].

It is useful to know that a significant group of students faces difficulties in adopting a study schedule and reviewing notes before an evaluation. Following this point, a relevant proportion of students also expressed anxiety about evaluations and thinking about the consequences of failing in this instance. Considering that both findings are related to motivation, an analysis point is to review the types of methodologies that improve students' adherence to scheduled activities, a criterion considered a predictor of academic success as demonstrated in other studies [20], in a subject that traditionally presents difficulties in student performance [21].

This search for new methodologies, accompanied by the digital literacy of teachers and students, has changed the ways of teaching and learning human anatomy [22]. An example of this has been gamification, a tool that combines strategies based on game mechanics, including playful activities that promote entertainment and student participation in their own learning process, which enhances metacognition [23].

In line with this, and also present in other works such as that of Perumal et al. [24], the statements were positive for items highlighting the concepts of fun, improving interest in learning, and being an interesting way to apply content in undergraduate anatomy study [25], bases that other authors have already incorporated as teaching tools in virtual environments and/or simulated games that are being exported to remote interaction platforms [26].

Another important point arises from the understanding that the majority of surveyed students declare trying to change their study methods to match the teaching styles of the instructor. However, traditionally, anatomy teaching has used resources based on rote memorization [27], which makes it difficult to transfer knowledge to practical and concrete examples. In this regard, and concerning the learning strategies evaluated with the MSLQ-SF questionnaire, a observed finding arises from the affirmative responses that virtually all students have regarding the activities they developed based on the "challenges/games" helped to reinforce the main ideas of each content and relate them to obtain a more complex understanding, similar to what was also observed in studies that implemented gamification in physiology courses [28].

From this point, it is possible to consider that gamification capitalizes on the inherent incentives in any gaming practice, improving the skills to interact, engage, and entertain even in learning tasks that are usually tedious for students [29].

In this regard, it is necessary to discuss the implications that combining different learning styles in the interaction of playful activities [30] with anatomy and physiology subjects may have on students, as well as its effects on performance, which literature has shown different experiences [31].

Indeed, while some experiences have revealed consistent improvements in grades or higher evaluation scores after implementing the gamified tool [32,33], the performance in this study did not experience an increase, which is consistent with other practices where an improvement in student performance has not been evidenced [34-36]. Considering that performance did not experience a substantial improvement, it is possible to relate that the difficulty in finding and arranging study schedules leads to poor preparation before an evaluation, which could explain the high percentage of students with high anxiety, close to 70%, when facing evaluations [37].

A limitation of this research was comparing it with control groups from previous years that do not represent the same cohort, similar to the difficulties faced by other studies [38]. It is expected that future studies will provide results allowing the analysis of the heterogeneity of works that have tested the gamified methodology and can prove its effectiveness through results and statistical analysis [39], as well as incorporating instruments that assess the effect of the strategy/intervention carried out.

Conclusions

The strategy of implementing gamification in anatomy learning constitutes a complement that has shown to quickly adhere and resonate with health students, through activities that are playful, entertaining, based on teamwork, and collaborative learning. However, its evidence regarding performance and outcomes is limited.

References

1. Alyahyan E, Düştegör D. Predicting academic success in higher education: literature review and best practices. Int J Educ Technol High Educ [Internet]. 2020;17(3):1-21. doi: https://doi.org/10.1186/s41239-020-0177-7

2. Medel-San Elías YL, Moreno R, Aguirre E. Implementación de gamificación en ambientes virtuales de enseñanza-aprendizaje para la educación superior. RIDE [Internet]. 2023;14(27):e528. doi: https://doi.org/10.23913/ride.v14i27.1596

3. Kryshko O, Fleischer J, Waldeyer J, Wirth J, Leutner D. Do motivational regulation strategies contribute to university students’ academic success? Learning and Individual Differences [Internet]. 2020;82:101912. doi: https://doi.org/10.1016/j.lindif.2020.101912

4. Moreno E. El “Breakout EDU” como herramienta clave para la gamificación en la formación inicial de maestros/as. Edutec [Internet]. 2019;(67):66-79. doi: https://doi.org/10.21556/edutec.2018.66.1247

5. Reyes-Cabrera W. Gamificación y aprendizaje colaborativo en línea: un análisis de estrategias en una universidad mexicana. Alteridad [Internet]. 2022;17(1):24-35. doi: https://doi.org/10.17163/alt.v17n1.2022.02

6. Casinelli A, Emé G, Murcia D, Figueroa K. Disko: herramienta lúdica para fomentar el trabajo colaborativo en estudiantes de educación superior en 2022. Educación [Internet]. 2022;31(60):25-53. doi: http://dx.doi.org/10.18800/educacion.202201.002

7. Khan A, Ahmad F, Malik M. Use of digital game based learning and gamification in secondary school science: The effect on student engagement, learning and gender difference. Education and information technologies [Internet]. 2017;22:2767-804. doi: http://dx.doi.org/10.1007/s10639-017-9622-1

8. Brull S, Finlayson S. Importance of Gamification in Increasing Learning. J Contin Educ Nurs [Internet]. 2016;47(8):372-5. doi: http://dx.doi.org/10.3928/00220124-20160715-09

9. Castro Benavides CI, Chiluiza MDL, Estévez Borja PJ, Ulloa Carrillo CL, Tanguila Shiguango SJ. La gamificación en la educación: evaluación de técnicas y aplicaciones para mejorar la motivación y el compromiso del estudiante. Ciencia Latina [Internet]. 2023;7(2):1438-60. doi: http://dx.doi.org/10.37811/cl_rcm.v7i2.5412

10. Prieto-Andreu J, Gómez-Escalonilla-Torrijos J, Said-Hung E. Gamificación, motivación y rendimiento en educación: Una revisión sistemática. Rev Electr Educare [Internet]. 2022;26(1):1-23. doi: https://doi.org/10.15359/ree.26-1.14

11. Badoiu GA, Escrig-Tena AB, Segarra-Ciprés M, García-Juan B, Salvador-Gómez A. Herramientas de gamificación: efectos sobre el aprendizaje significativo, el engagement y el estrés de los estudiantes. In Garrigós Simón FJ, Estellés Miguel S, Lengua Lengua I, Narangajavana Y, editors. INNODOCT/20 "International Conference on Innovation, Documentation and Education" [Internet]. Valencia: Universitat Politècnica de València; 2020. p. 487-494. doi: http://dx.doi.org/10.4995/INN2020.2020.11848

12. Hernández-Horta I, Monroy-Reza A, Jiménez-García M. Aprendizaje mediante Juegos basados en Principios de Gamificación en Instituciones de Educación Superior. Formación universitaria [Internet]. 2018;11(5):31-40. doi: http://dx.doi.org/10.4067/S0718-50062018000500031

13. Stambiuk-Castellano M, Contreras-McKay I, Neyem A, Inzunza O, Ottone NE, Del Sol M. Plataforma de software educativa gamificada: experiencia con estudiantes de anatomía de la Universidad de La Frontera. Int J Morphol [Internet]. 2022;40(2):297-303. doi: http://dx.doi.org/10.4067/S0717-95022022000200297

14. Ortiz-Colón AM, Jordán J, Agredal M. Gamificación en educación: una panorámica sobre el estado de la cuestión. Educ Pesqui [Internet]. 2018;44(e173773). doi: http://dx.doi.org/10.1590/s1678-4634201844173773

15. Rutledge C, Walsh C, Swinger N, Auerbach M, Castro D, Dewan M, et al. Gamification in Action: Theoretical and Practical Considerations for Medical Educators. Acad Med [Internet]. 2018;93(7):1014-20. doi: http://dx.doi.org/10.1097/ACM.0000000000002183

16. Aldemir T, Celik B, Kaplan G. A qualitative investigation of student perceptions of game elements in a gamified course. Computers in Human Behavior [Internet]. 2018;78:235-54. doi: http://dx.doi.org/10.1016/j.chb.2017.10.001

17. Masso J, Romero M, Fonseca L, Gallego A. Cuestionario de Motivación y Estrategias de Aprendizaje Forma Corta - MSLQ SF en estudiantes universitarios: Análisis de la Estructura Interna. Los libertatores fundacion universitaria [Internet]. Bogotá: Fundación Unviersitaria Los Libertadores; 2021. 18 p. Available from: http://hdl.handle.net/11371/4215

18. Latre-Navarro L, Quintas-Hijos A, Saez-Bondía MJ. The combined effects of an anatomy program integrating drawing and gamification on basic psychological needs satisfaction among sport sciences students: results of a natural experiment. Anat Sci Educ [Internet]. 2024;17(2):366-78. doi: http://dx.doi.org/10.1002/ase.2358

19. García-Barrios A, Cisneros-Gimeno A, Benito-Rodríguez J, Latorre-Pellicer A, Whyte-Orozco J. Nuevas formas de motivación en la enseñanza de la anatomía humana. FEM [Internet]. 2023;26(6):255-9. Available from: https://scielo.isciii.es/scielo.php?script=sci_arttext&pid=S2014-98322023000700005

20. Núñez-Cook S, Gajardo P, Lizana P, Vega-Fernández G, Hormazabal-Peralta A, Binvignat O. Percepción de los estudiantes de anatomía humana frente a un método de enseñanza y aprendizaje basado en la construcción de un modelo de pelvis. Int J Morphol [Internet]. 2018;36(1):221-5. doi: http://dx.doi.org/10.4067/S0717-95022018000100221

21. Barrientos OC, Briceño MO. Rendimiento académico en Anatomía Humana en estudiantes de kinesiología. Aproximación a sus causas y efectos. Educ Med Super [Internet]. 2018;32(2):1-12. Available from: https://ems.sld.cu/index.php/ems/article/view/1357/665

22. García L, Zuñiga J, Perez-Trejos L. Las Tecnologías E-Learning y TIC en el Aprendizaje a Largo Plazo de la Anatomía Humana en Estudiantes del Área de la Salud: Una Revisión de la Literatura. Int J Morphol [Internet]. 2021;39(2):396-400. doi: http://dx.doi.org/10.4067/S0717-95022021000200396

23. Ang ET, Chan JM, Gopal V, Li Shia N. Gamifying anatomy education. Clin Anat [Internet]. 2018;31(7):997-1005. doi: http://dx.doi.org/10.1002/ca.23249

24. Perumal V, Dash S, Mishra S, Techataweewan N. Clinical anatomy through gamification: a learning journey. N Z Med J [Internet]. 135(1548):19-30. Available from: https://www.proquest.com/openview/1d2e05bebf8411687c589e87f3801afe/1?pq-origsite=gscholar&cbl=1056335

25. Masuko TS, Andrade LDD, Da Mata DR, De Souza Machado A, Lomba EL, Do Nascimento MA. Gamification as a tool for medical education in anatomy: A preliminary study. The Faseb Journal [Internet]. 2019;33(Suppl 1):604-1. doi: https://doi.org/10.1096/fasebj.2019.33.1_supplement.604.1

26. Wust A, Swart T, Oates G, Lottering N. Breaking boundaries: effectiveness of gamification and student Co-creation for anatomy remote learning. The Faseb Journal [Internet]. 2021;35(Suppl 1). doi: https://doi.org/10.1096/fasebj.2021.35.S1.04399

27. Alzate-Mejía OA, Tamayo-Alzate OE. Metacognición en el Aprendizaje de la Anatomía. Int J Morphol [Internet]. 2019;37(1):7-11. doi: https://doi.org/10.4067/S0717-95022019000100007

28. Roberts J, Johnson LA, Dyhr JP. Cracking the code: using educational gaming for high-level thinking in physiology education. Adv Physiol Educ [Internet]. 2024;48(2):260-9. doi: https://doi.org/10.1152/advan.00154.2023

29. Al Saad F, Durugbo CM. Gamification-as-Innovation: a review. International Journal of Innovation and Technology Management [Internet]. 2021;18(5): 2130002. doi: https://doi.org/10.1142/S0219877021300020

30. Lanza Castillo V, Romero Maza L, Bennasar García MI. Actividades lúdicas como estrategia pedagógica para fortalecer el aprendizaje en la asignatura Anatomía y Fisiología Humana. Rev Educación [Internet]. 2024;48(1). doi: https://doi.org/10.15517/revedu.v48i1.56006

31. Escanero-Marcen JF, Soria MS, Guerra-Sánchez M. Estilos de aprendizaje y rendimiento académico: diferentes herramientas, diferentes resultados. FEM [Internet]. 2018;21(4):173-80. doi: https://doi.org/10.33588/fem.214.954

32. Javed K, Rafique S, Azhar T. Impact of Gamification on Education Prime Time. PJMHS [Internet]. 2022;16(3):18-9. doi: https://doi.org/10.53350/pjmhs2216318

33. Castellano M, Contreras‐McKay I, Neyem A, Farfán E, Inzunza O, Ottone N, et al. Empowering human anatomy education through gamification and artificial intelligence: An innovative approach to knowledge appropriation. Clinical Anatomy [Internet]. 2024;37(1):12-24. https://doi.org/10.1002/ca.24074

34. Wu H, Lim S, Zheng J, Guo J. Medical students’ motivation and academic performance: the mediating roles of self-efficacy and learning engagement. Med Educ Online [Internet]. 2020;25(1):1742964. doi: https://doi.org/10.1080/10872981.2020.1742964

35. Navarro-Sempere A, García M, García E, Jiménez D, Pinilla V, López-Jaén AB, et al. Gamificación Educativa en el Laboratorio de Biología Celular. Int J Morphol [Internet]. 2022;40(6):1426-33. doi: https://doi.org/10.4067/S0717-95022022000601426

36. Ngan OMY, Tang TLK, Chan AKY, Chen DM, Tang MK. Blended Learning in Anatomy Teaching for Non-Medical Students: An Innovative Approach to the Health Professions Education. Health Professions Education [Internet]. 2018;4(2):149-58. doi: https://doi.org/10.1016/j.hpe.2017.11.001

37. Romero-Alemán M. A pilot study on gamified and conventional e-quizzes reinforcing human histology among first-year medical and physiotherapy students. Anat Sci Educ [Internet]. 2024;17(4):844-54. https://doi.org/10.1002/ase.2406

38. Pimienta S, Boude O. Gamificación en educación médica: un aporte para fortalecer los procesos de formación. REMS [Internet]. 2022;36(4):e3457. Available from: https://ems.sld.cu/index.php/ems/article/view/3457

39. Chytas D, Piagkou M, Natsis K. Outcomes of the implementation of game-based anatomy teaching approaches: An overview. Morphologie [Internet]. 2022;106(352):8-14. doi: https://doi.org/10.1016/j.morpho.2021.02.001

Appendix

Percentages and mean for MSQL-SF Learning Strategies Questionnaire.
